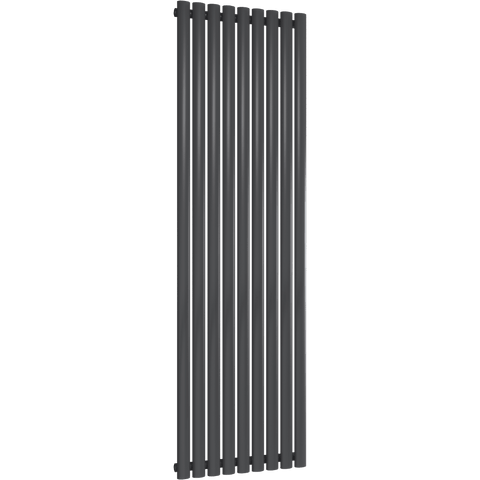

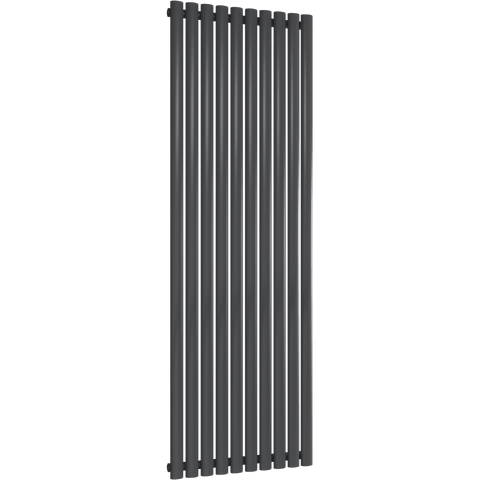

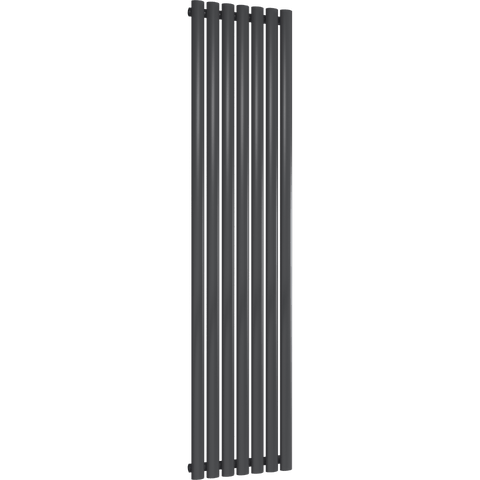

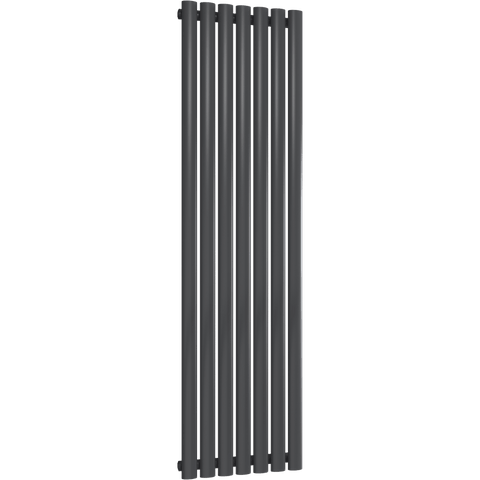

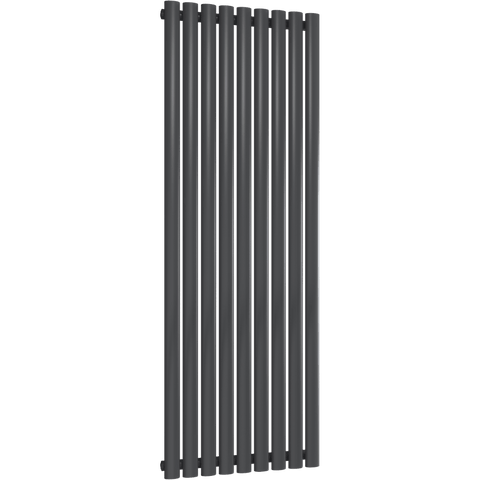

UB Trade Oval Column Single Vertical Radiator - Anthracite
UB Trade Oval Column Single Vertical Radiator - Anthracite

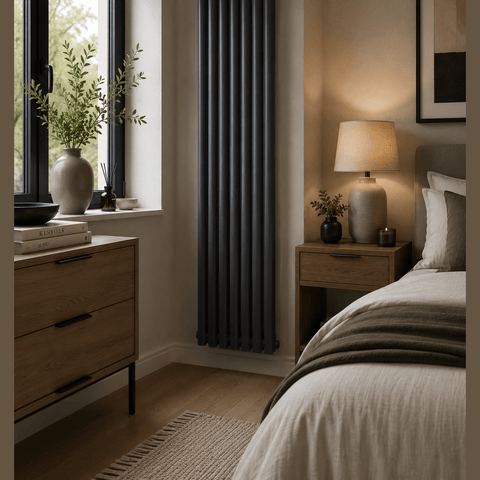

The UB Trade Oval Column Single Vertical Radiator - Anthracite is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Oval Column range features rounded tube styling for a softer contemporary appearance while still delivering practical heat output.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- Anthracite finish
- Vertical installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 1600 x 420 mm | 420 mm | 50 mm | 92 mm | 7 | 3407 BTU / 999 W |
| 1600 x 540 mm | 540 mm | 50 mm | 92 mm | 9 | 4382 BTU / 1285 W |
| 1800 x 300 mm | 300 mm | 50 mm | 92 mm | 5 | 2697 BTU / 791 W |
| 1800 x 420 mm | 420 mm | 50 mm | 92 mm | 7 | 3777 BTU / 1108 W |
| 1800 x 540 mm | 540 mm | 50 mm | 92 mm | 9 | 4856 BTU / 1424 W |
| 1800 x 600 mm | 600 mm | 50 mm | 92 mm | 10 | 5396 BTU / 1582 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
