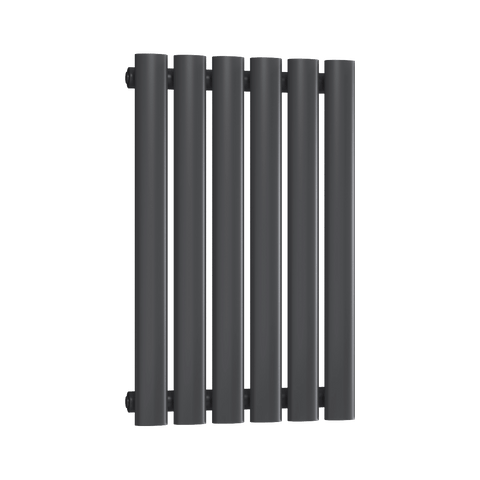

UB Trade Oval Column Single Horizontal Radiator - Anthracite
UB Trade Oval Column Single Horizontal Radiator - Anthracite
The UB Trade Oval Column Single Horizontal Radiator - Anthracite is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Oval Column range features rounded tube styling for a softer contemporary appearance while still delivering practical heat output.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- Anthracite finish
- Horizontal installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 600 x 360 mm | 360 mm | 50 mm | 92 mm | 6 | 1210 BTU / 355 W |
| 600 x 540 mm | 540 mm | 50 mm | 92 mm | 9 | 1814 BTU / 532 W |
| 600 x 780 mm | 780 mm | 50 mm | 92 mm | 13 | 2619 BTU / 768 W |
| 600 x 960 mm | 960 mm | 50 mm | 92 mm | 16 | 3223 BTU / 945 W |
| 600 x 1140 mm | 1140 mm | 50 mm | 92 mm | 19 | 3827 BTU / 1122 W |
| 600 x 1440 mm | 1440 mm | 50 mm | 92 mm | 24 | 4833 BTU / 1417 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
