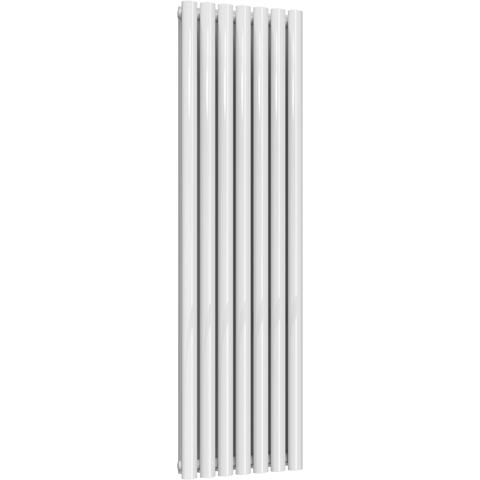

UB Trade Oval Column Double Vertical Radiator - White
UB Trade Oval Column Double Vertical Radiator - White
The UB Trade Oval Column Double Vertical Radiator - White is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Oval Column range features rounded tube styling for a softer contemporary appearance while still delivering practical heat output.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- White finish
- Vertical installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 1600 x 420 mm | 420 mm | 63 mm | 105 mm | 14 | 5004 BTU / 1467 W |
| 1600 x 540 mm | 540 mm | 63 mm | 105 mm | 18 | 6433 BTU / 1887 W |
| 1800 x 300 mm | 300 mm | 63 mm | 105 mm | 10 | 3985 BTU / 1169 W |
| 1800 x 420 mm | 420 mm | 63 mm | 105 mm | 14 | 5581 BTU / 1637 W |
| 1800 x 540 mm | 540 mm | 63 mm | 105 mm | 18 | 7174 BTU / 2104 W |
| 1800 x 600 mm | 600 mm | 63 mm | 105 mm | 20 | 7973 BTU / 2338 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
