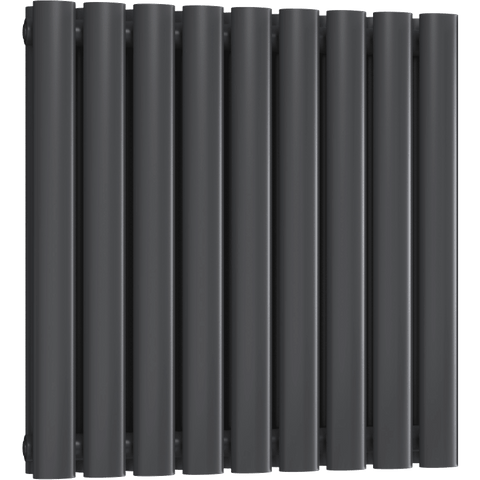

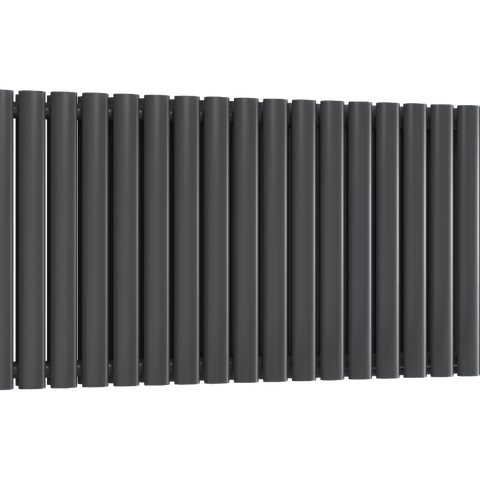

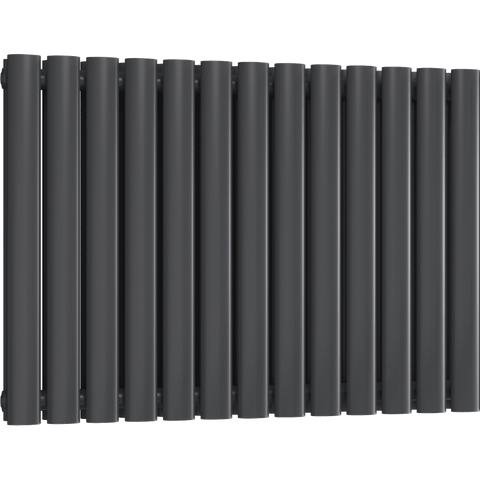

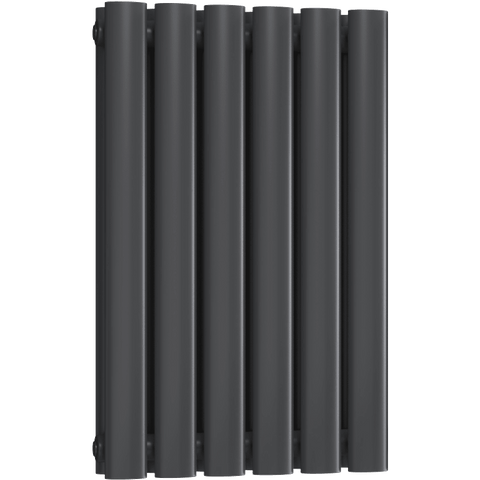

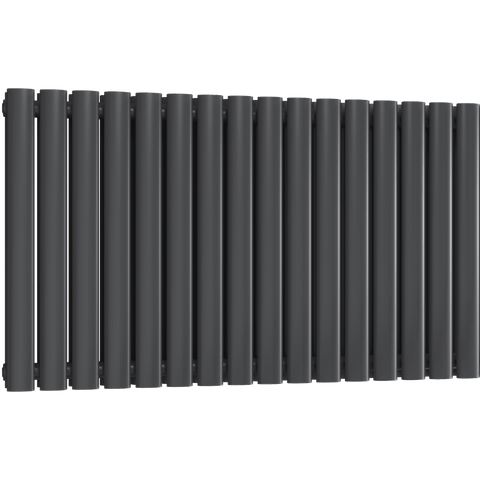

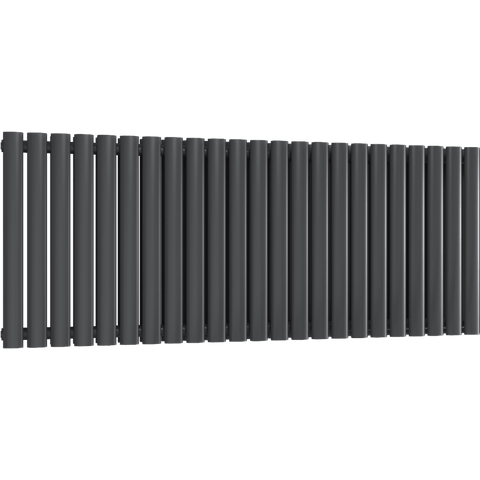

UB Trade Oval Column Double Horizontal Radiator - Anthracite
UB Trade Oval Column Double Horizontal Radiator - Anthracite

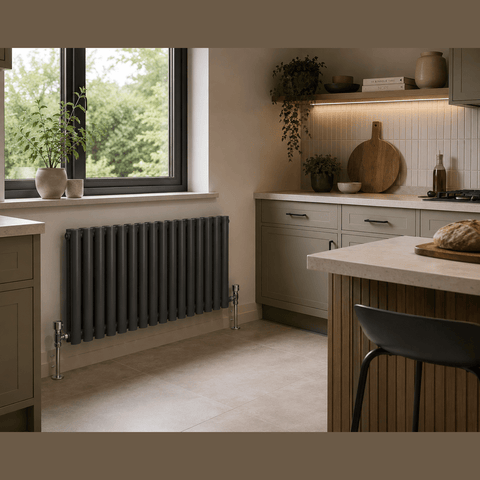

The UB Trade Oval Column Double Horizontal Radiator - Anthracite is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Oval Column range features rounded tube styling for a softer contemporary appearance while still delivering practical heat output.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- Anthracite finish
- Horizontal installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 600 x 360 mm | 360 mm | 63 mm | 105 mm | 12 | 1842 BTU / 540 W |
| 600 x 540 mm | 540 mm | 63 mm | 105 mm | 18 | 2764 BTU / 811 W |
| 600 x 780 mm | 780 mm | 63 mm | 105 mm | 26 | 3991 BTU / 1170 W |
| 600 x 960 mm | 960 mm | 63 mm | 105 mm | 32 | 4911 BTU / 1440 W |
| 600 x 1140 mm | 1140 mm | 63 mm | 105 mm | 38 | 5833 BTU / 1711 W |
| 600 x 1440 mm | 1440 mm | 63 mm | 105 mm | 48 | 7368 BTU / 2161 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
