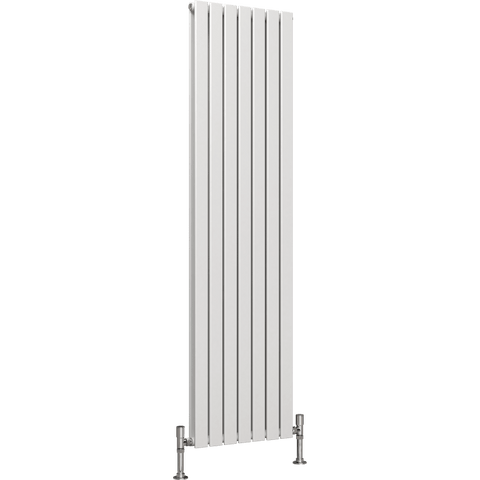

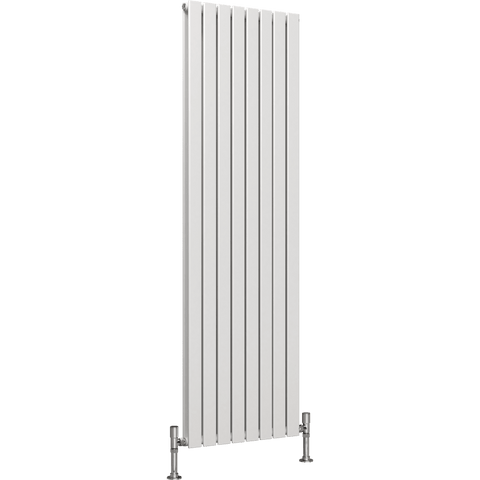

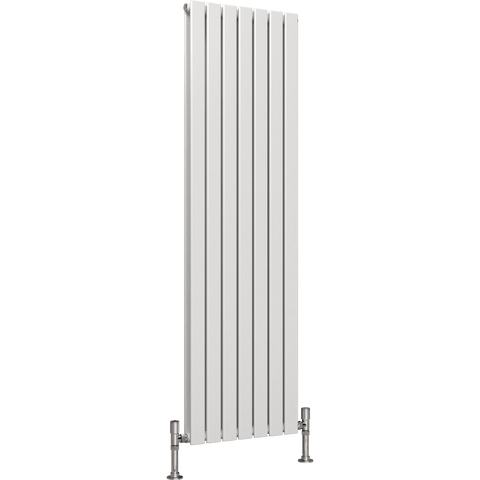

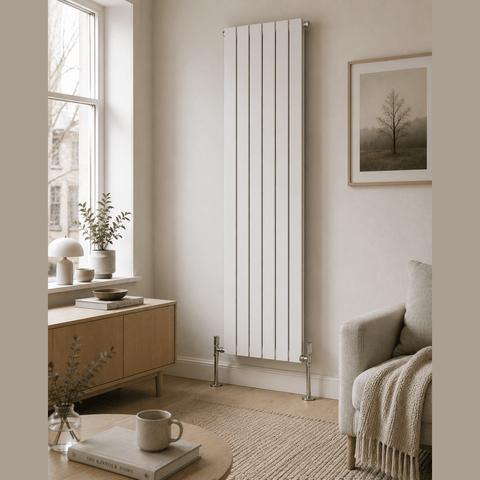

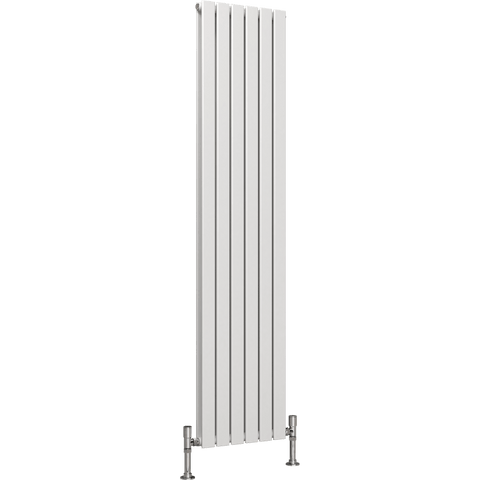

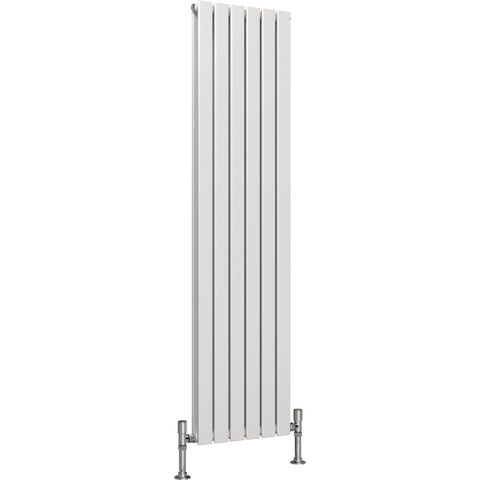

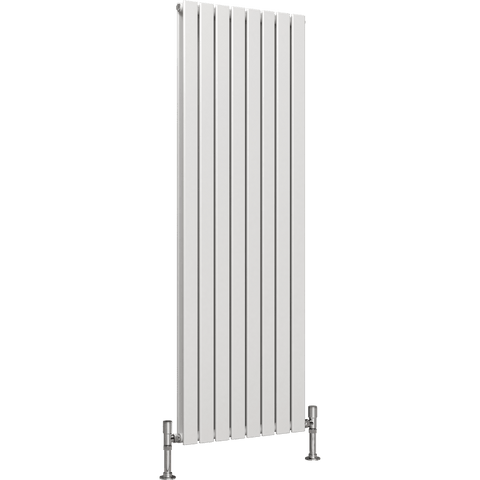

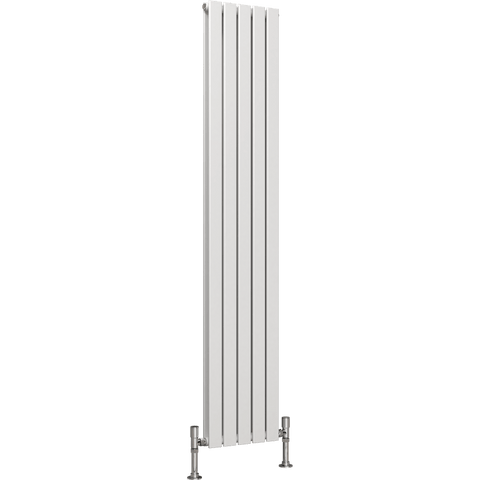

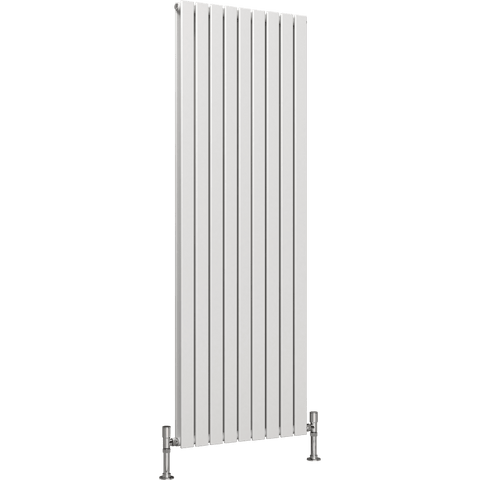

UB Trade Flat Column Double Vertical Radiator - White
UB Trade Flat Column Double Vertical Radiator - White
The UB Trade Flat Column Double Vertical Radiator - White is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Flat Column range features a clean flat-panel design with strong heat output and a minimalist designer look.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- White finish
- Vertical installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 1600 x 420 mm | 420 mm | 63 mm | 94 mm | 12 | 4719 BTU / 1384 W |
| 1600 x 490 mm | 490 mm | 63 mm | 94 mm | 14 | 5505 BTU / 1614 W |
| 1600 x 560 mm | 560 mm | 63 mm | 94 mm | 16 | 6292 BTU / 1845 W |
| 1800 x 350 mm | 350 mm | 63 mm | 94 mm | 10 | 4445 BTU / 1304 W |
| 1800 x 420 mm | 420 mm | 63 mm | 94 mm | 12 | 5335 BTU / 1565 W |
| 1800 x 490 mm | 490 mm | 63 mm | 94 mm | 14 | 6223 BTU / 1825 W |
| 1800 x 560 mm | 560 mm | 63 mm | 94 mm | 16 | 7113 BTU / 2086 W |
| 1800 x 630 mm | 630 mm | 63 mm | 94 mm | 18 | 8001 BTU / 2346 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
