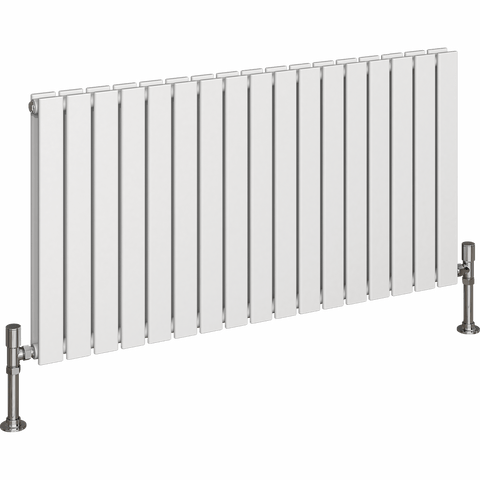

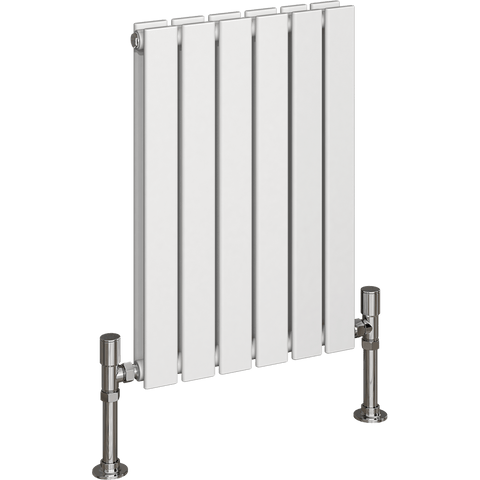

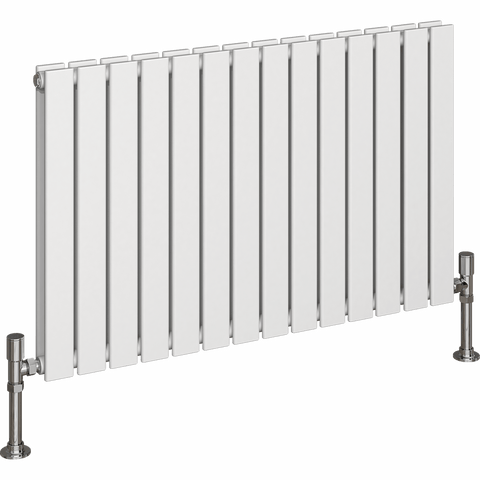

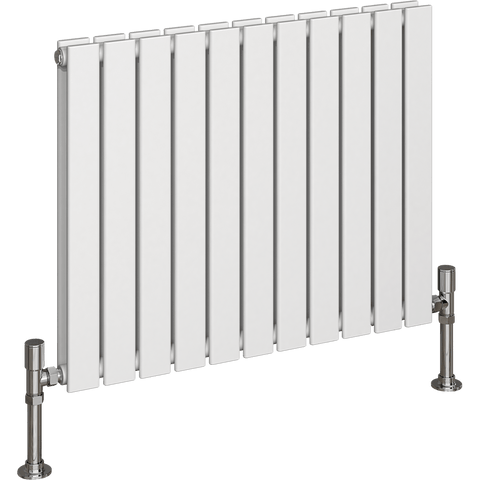

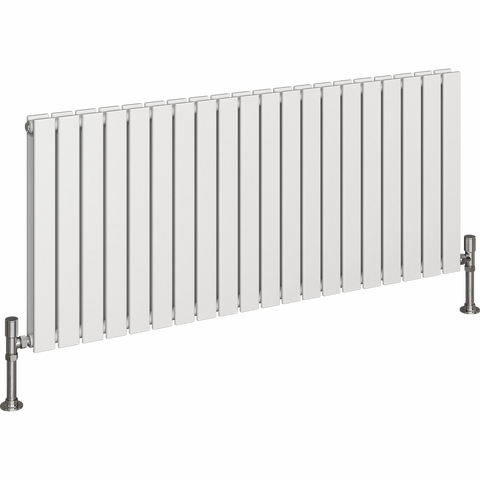

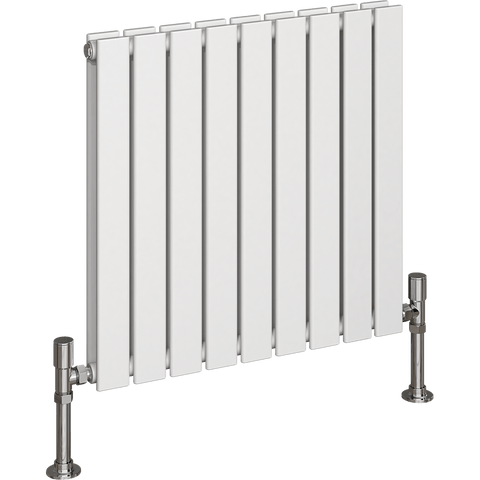

UB Trade Flat Column Double Horizontal Radiator - White
UB Trade Flat Column Double Horizontal Radiator - White
The UB Trade Flat Column Double Horizontal Radiator - White is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Flat Column range features a clean flat-panel design with strong heat output and a minimalist designer look.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- White finish
- Horizontal installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 600 x 420 mm | 420 mm | 63 mm | 94 mm | 12 | 1974 BTU / 579 W |
| 600 x 630 mm | 630 mm | 63 mm | 94 mm | 18 | 2961 BTU / 868 W |
| 600 x 770 mm | 770 mm | 63 mm | 94 mm | 22 | 3618 BTU / 1061 W |
| 600 x 980 mm | 980 mm | 63 mm | 94 mm | 28 | 4606 BTU / 1351 W |
| 600 x 1190 mm | 1190 mm | 63 mm | 94 mm | 34 | 5594 BTU / 1640 W |
| 600 x 1470 mm | 1470 mm | 63 mm | 94 mm | 42 | 6909 BTU / 2026 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
