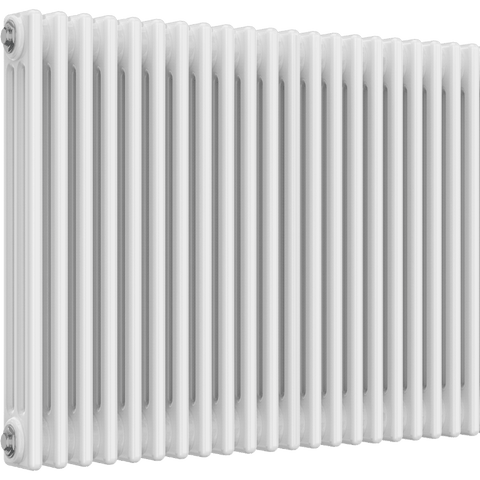

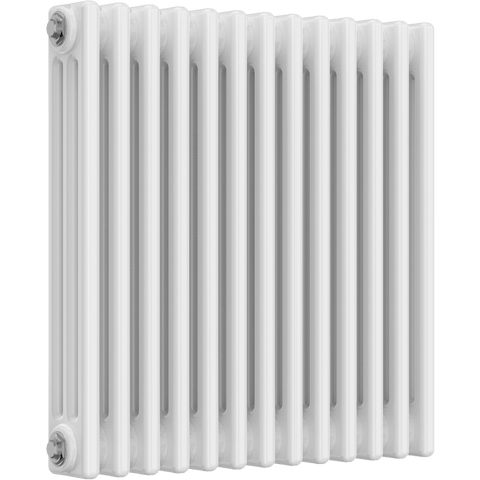

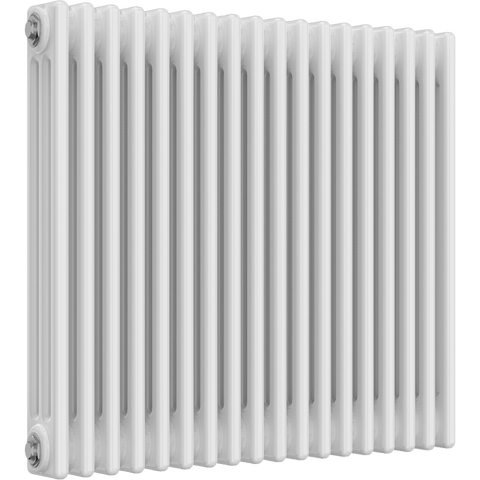

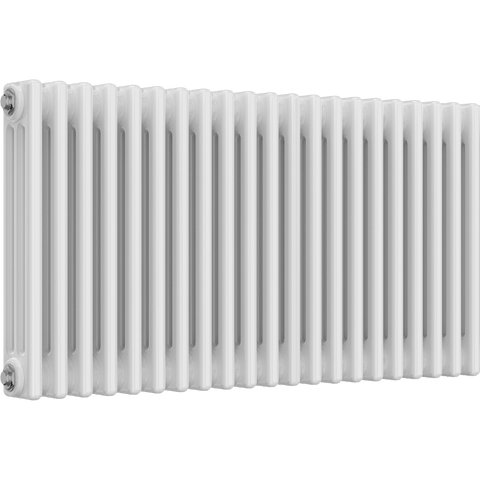

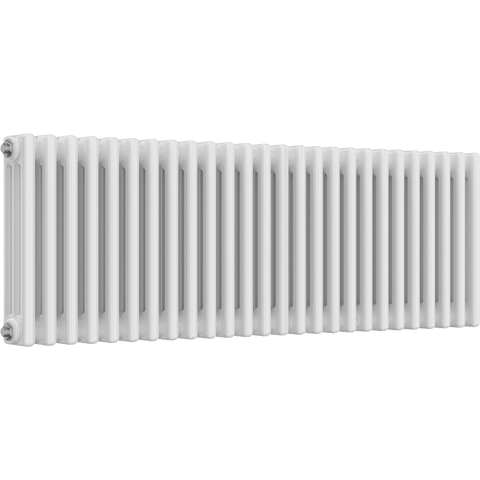

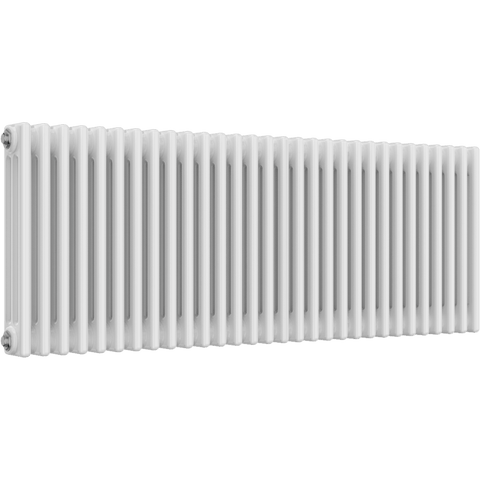

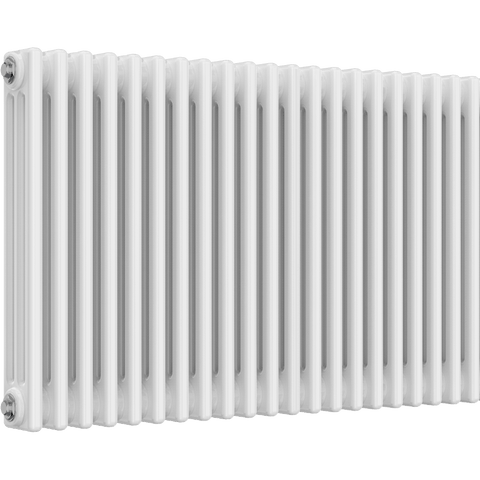

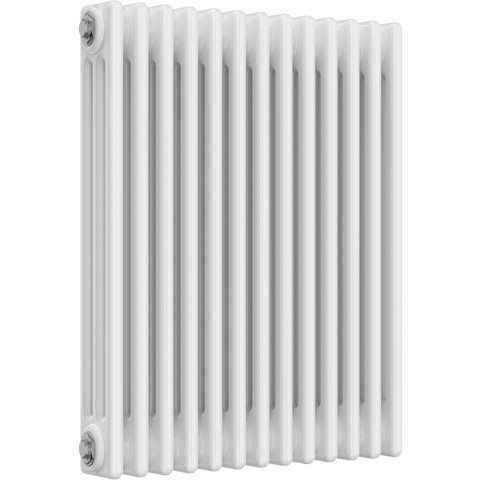

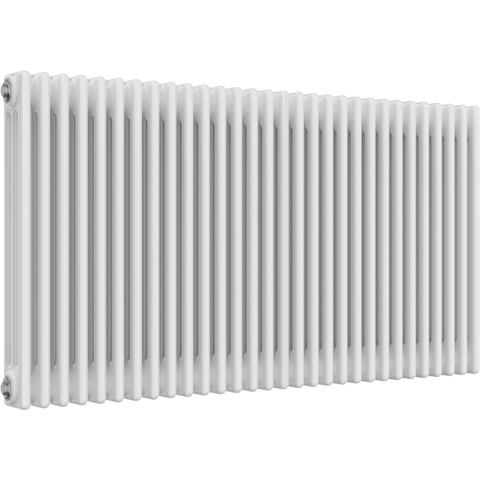

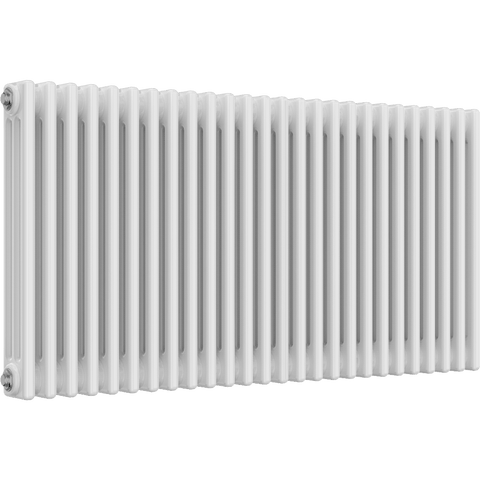

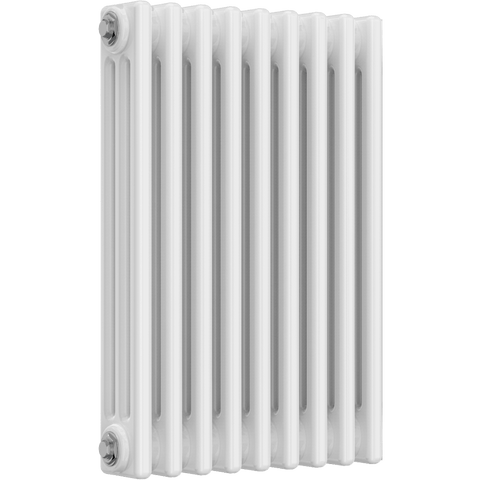

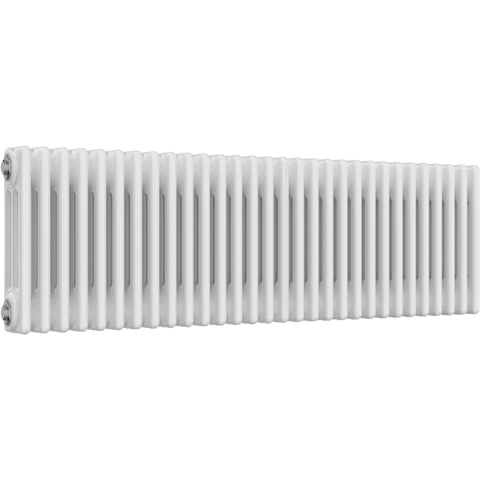

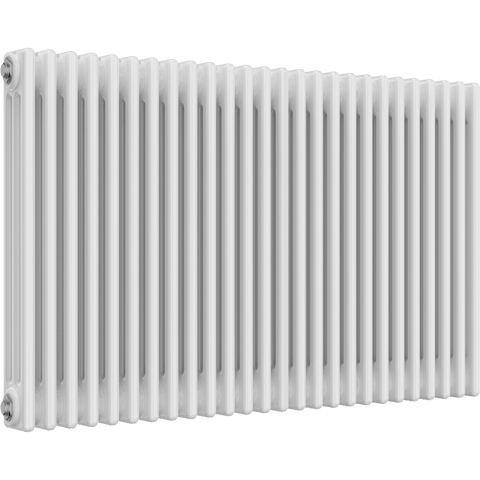

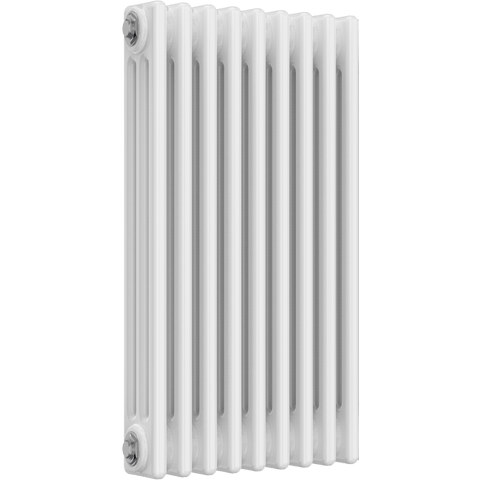

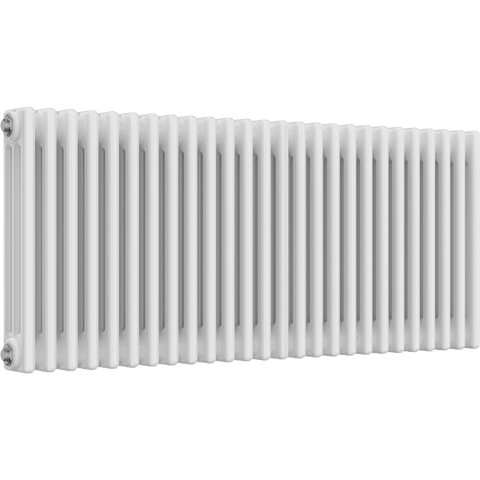

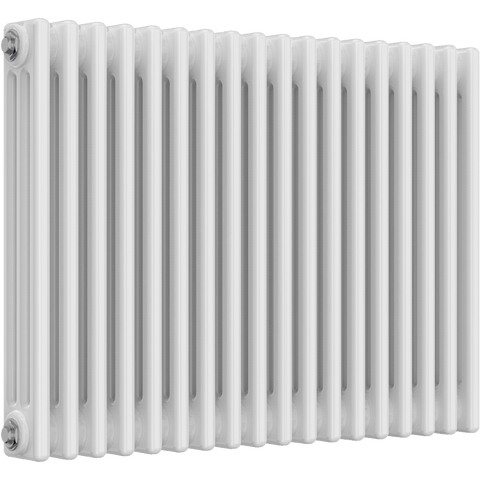

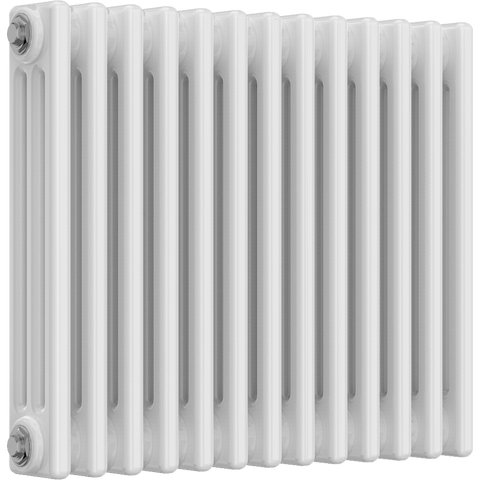

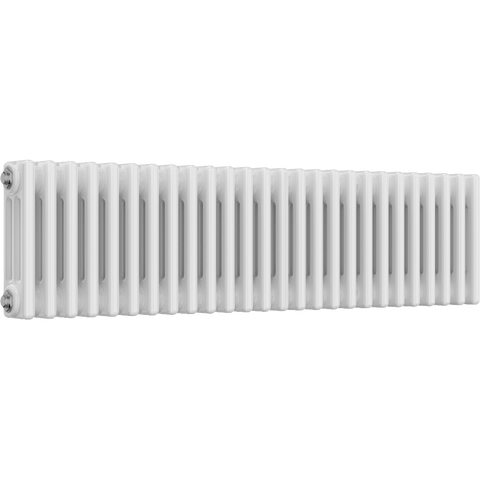

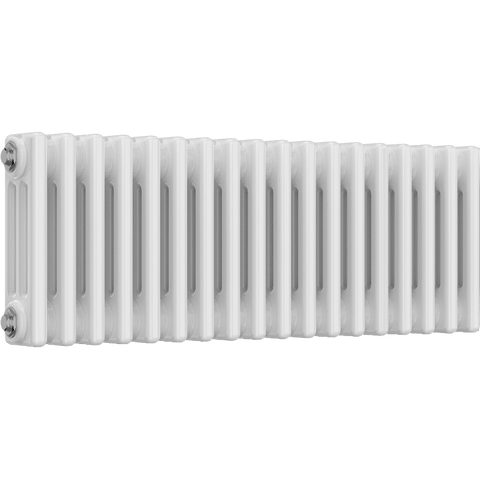

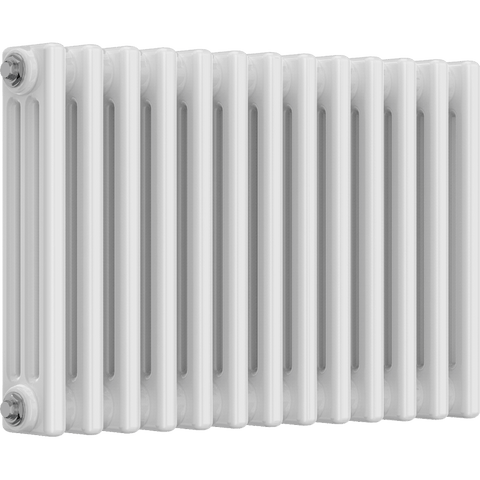

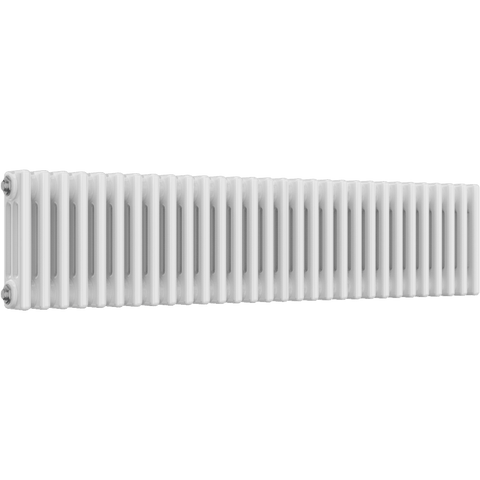

UB Trade Classic Column 3 Column Horizontal Radiator - White

£150⁷⁶
Save £197

Quantity

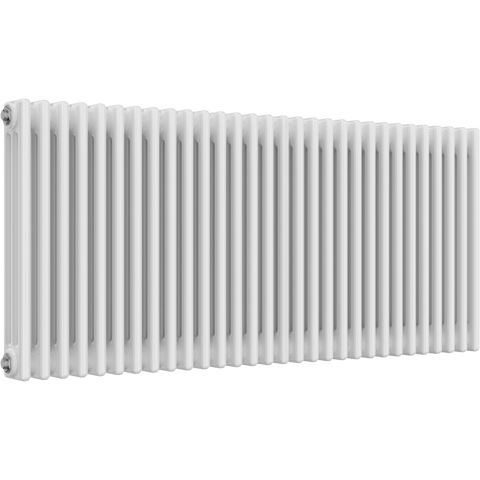

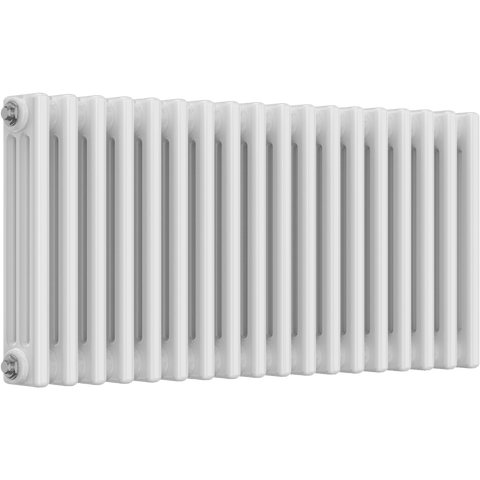

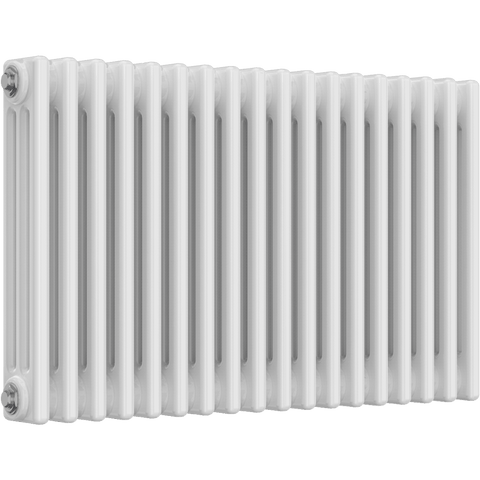

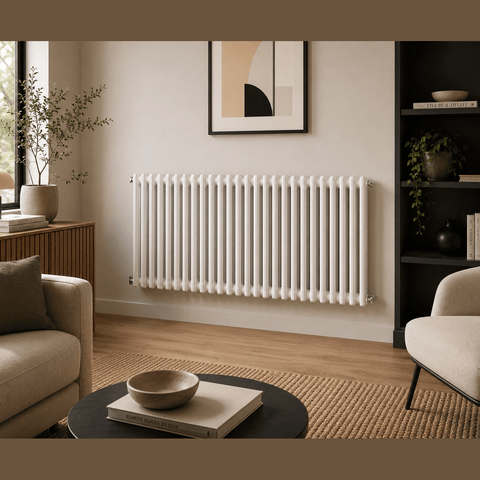

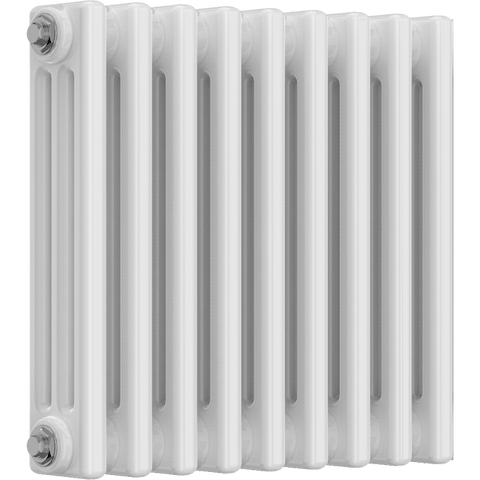

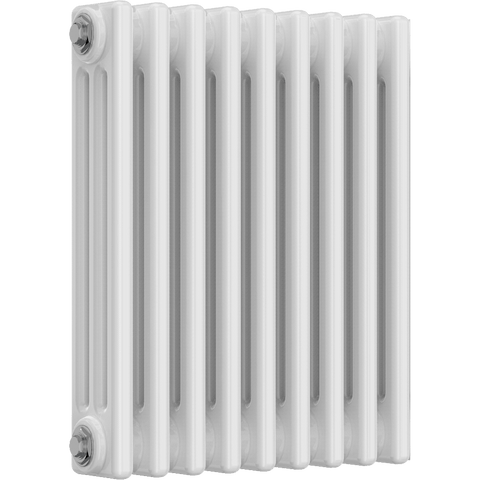

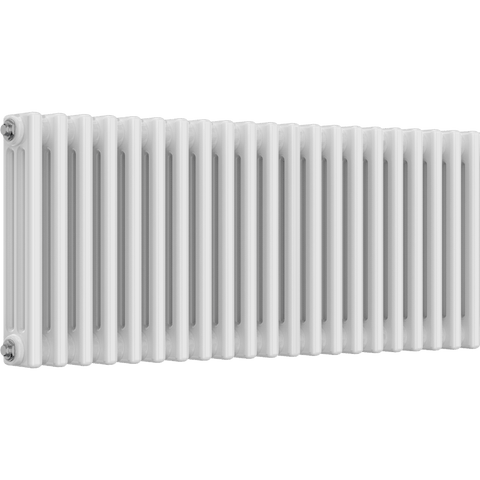

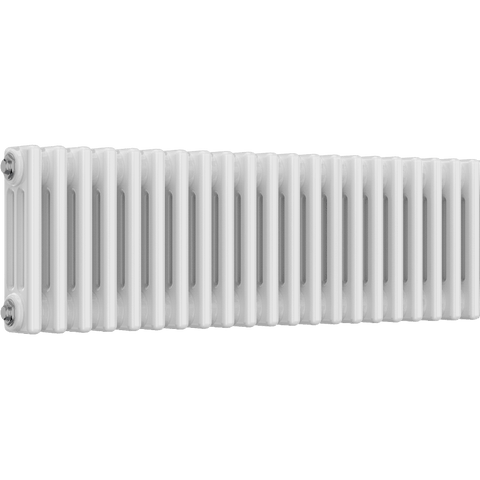

UB Trade Classic Column 3 Column Horizontal Radiator - White

The UB Trade Classic Column 3 Column Horizontal Radiator - White is a traditional column radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.

The Trade Classic Column range has a timeless column radiator appearance, making it ideal for both period-inspired and contemporary spaces.

Key Features

Premium quality steel construction
5 year manufacturer guarantee
White finish
Horizontal installation
Suitable for central heating systems
Available in multiple size options
Wall brackets, air vent and end plug supplied

Technical Specifications

Size	Pipe Centres	Wall to Pipe Centres	Wall Distance	Sections	Heat Output ΔT60
300 x 830 mm	830 mm	68 mm	118 mm	18	2417 BTU / 709 W
300 x 965 mm	965 mm	68 mm	118 mm	21	2818 BTU / 826 W
300 x 1190 mm	1190 mm	68 mm	118 mm	26	3489 BTU / 1023 W
300 x 1370 mm	1370 mm	68 mm	118 mm	30	4026 BTU / 1181 W
400 x 425 mm	425 mm	68 mm	118 mm	9	1610 BTU / 472 W
400 x 605 mm	605 mm	68 mm	118 mm	13	2327 BTU / 682 W
400 x 830 mm	830 mm	68 mm	118 mm	18	3222 BTU / 945 W
400 x 965 mm	965 mm	68 mm	118 mm	21	3758 BTU / 1102 W
400 x 1190 mm	1190 mm	68 mm	118 mm	26	4653 BTU / 1365 W
400 x 1370 mm	1370 mm	68 mm	118 mm	30	5367 BTU / 1574 W
500 x 425 mm	425 mm	68 mm	118 mm	9	1987 BTU / 583 W
500 x 605 mm	605 mm	68 mm	118 mm	13	2870 BTU / 842 W
500 x 830 mm	830 mm	68 mm	118 mm	18	3973 BTU / 1165 W
500 x 965 mm	965 mm	68 mm	118 mm	21	4636 BTU / 1360 W
500 x 1190 mm	1190 mm	68 mm	118 mm	26	5742 BTU / 1684 W
500 x 1370 mm	1370 mm	68 mm	118 mm	30	6624 BTU / 1943 W
600 x 425 mm	425 mm	68 mm	118 mm	9	2346 BTU / 688 W
600 x 605 mm	605 mm	68 mm	118 mm	13	3389 BTU / 994 W
600 x 830 mm	830 mm	68 mm	118 mm	18	4676 BTU / 1371 W
600 x 965 mm	965 mm	68 mm	118 mm	21	5455 BTU / 1600 W
600 x 1190 mm	1190 mm	68 mm	118 mm	26	6755 BTU / 1981 W
600 x 1370 mm	1370 mm	68 mm	118 mm	30	7793 BTU / 2285 W
750 x 425 mm	425 mm	68 mm	118 mm	9	2934 BTU / 860 W
750 x 605 mm	605 mm	68 mm	118 mm	13	4237 BTU / 1243 W
750 x 830 mm	830 mm	68 mm	118 mm	18	5845 BTU / 1714 W
750 x 965 mm	965 mm	68 mm	118 mm	21	6820 BTU / 2000 W
750 x 1190 mm	1190 mm	68 mm	118 mm	26	8443 BTU / 2476 W
750 x 1370 mm	1370 mm	68 mm	118 mm	30	9741 BTU / 2857 W

Installation note: For pipe centre measurement including valves, add 90mm accordingly.

All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
